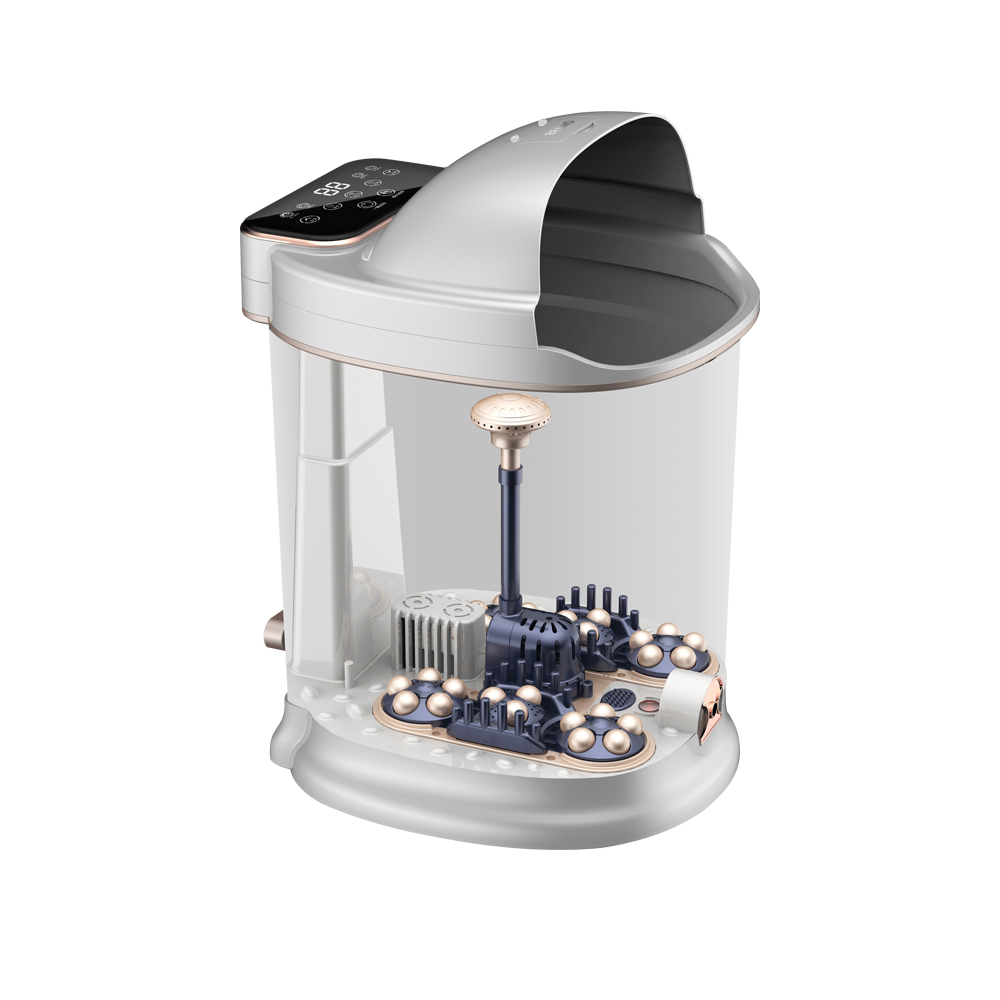

Intelligent Full Electric Foot Massager

H28-A is an electric massage footbath with intelligent one-touch start, equipped with heating, electric massage with massage and shower surfing. Promotes blood circulation, eliminates fatigue, improves foot microcirculation, improves sleep quality and promotes good health. When switched on, it can be adjusted at will between 35-48 degrees to reach the temperature you have set. This machine will automatically maintain a constant temperature, so that you can enjoy the comfort brought to you by the foot bath, more attention to humane design, to bring people a new experience, enjoy.

1) Product dimensions: 450(L)* 390(W)* 630(H) with castors

2) Barrel depth: 400mm Maximum water capacity: 20L

3) Package size: 485(L)*435(W)*580(H)mm

4) Product weight: 5.6Kg (gross weight) 7.5kg (net weight)

Number of boxes: 1PC/CTN weight

Contact now

PREV：Large Capacity Footbath NEXT：Heated Thermostatic Home Footbath

PRODUCT DESCRIPTION

technical parameter
External/Internal Inspection
Machine reliability test
Packaging and Product Identification

Number	Test items	Test conditions: 15 minutes after the whole machine works normally
		Input voltage specification: 220V AC ∕50Hz
		Test instrument: Frequency meter Power meter Electronic scale Tape measure Tensiometer
1	Rated power	750W(+5,-10)%
2	Current	Normal operating current 0-3.5A.
3	PTC rated power	220V 50Hz 750W
4	Massage motor	DC220V Permanent magnet DC motor
5	Power cord length	Power cord exposed 1.5m

Since 2009

Ningbo Yuesheng Healthy Technology Co., Ltd.

We are located in Cixi City, Zhejiang Province, covering an area of 26,000 square meters. We are a professional foot bath manufacturer with 13 years of experience. As Custom Intelligent Full Electric Foot Massager Suppliers in China, the company has more than 600 employees, including about 60 professional and technical personnel. The company has 16 advanced production lines, 20 large-tonnage injection molding units, various production auxiliary equipment and complete testing equipment, with a daily production capacity of 40,000 units, a finished product storage capacity of 1 million units, and an annual output of more than 6 million units. At present, it is a foot bath manufacturer with powerful scale and production capacity in the same industry in China.

13 Years Experience

We have a professional design and development team with rich industry experience and product development experience, which can meet various customization needs. As OEM Intelligent Full Electric Foot Massager Factory, our products enjoy a high reputation in the industry and a good reputation among customers. Our principle is "quality first, reputation first", serve every customer well, and all products will be 100% inspected before shipment. We are looking for reliable partners all over the world. Please feel free to contact us.

Visual inspection:
Number	Check item	Inspection criteria
1	Appearance of the machine	1. The surface of the machine must not have scratches, chips, grease, dirt or stains. Printing must be clear and consistent.
		2. All exterior labels must be correctly applied and positioned.
		3、The appearance is bright and there is no obvious colour difference between the whole machine.
		4、Switch position: all switches are located in the closed position before packaging.
2	AC power cord	1, correct specification 53 (RVV) 300/300V, exposed wire length 1.5m (including card head).
		2, Colour is as described in the BOM sheet, outer surface is clean and free from dirt.
3	Nameplate, manual, caster check	Nameplate should be attached to the bottom of the product, caster 4pcs and manual in the manual bag

Internal inspection:
Number	Check item		Inspection criteria
1	Screw torque requirements	Base	1. ST4*14 F≥5kgf.cm
2	Gap and matching	Gap fits evenly, each part fits completely.
3	Internal and external routine inspection	1、No screws and other foreign objects left inside the body.
		2、High and low voltage lines are tied separately and must not intersect.

Number	Test items	standard test
1	Pressure test	aboratory	Whole machine: 2500V 3S 5mA
2	drop test	The whole machine including the outer box packaging test: including the outer box packaging, make a free fall from a height of 1.5 meters, and drop it once each in the way of one corner, three edges and six sides. It is required that the product is not damaged and functions normally.
3	Stability test	The most unfavourable position in normal use of the product is placed on a 10° incline and cannot be tipped over.
4	Power cord tension	AC power cord: 25 tension tests with 100N pulling force on the power cord, with no displacement of the cord skin exceeding 2mm.
5	Drainage testing	Sealed when the 90° rotating drain switch is perpendicular to the floor; drained when the 90° rotating drain switch is parallel to the floor.
6	Red light function check	Input rated voltage 220V/50Hz, press the one-touch start button, the LED red light will be on and of uniform brightness, press the one-touch start button once more, the red light will be off. The red light can also be controlled separately. In one-touch start mode, press the red light button again and the red light will go out.
7	Life time test	Approx. 600 hours of continuous time accumulation, no abnormal function.
8	One-touch start test	The whole machine runs for 10 minutes and turns off for 10 minutes for one cycle, after 1800 cycles it can work normally.

Number	Test items	standard test
1	Packaging accessories	All packaging accessories, labeling, etc. shall not be overpacked, underpacked, or not packed, and must meet the requirements of the BOM.
		The product should fit neatly and smoothly into the colour box. The one-touch start button is off
2	Carton size	1. 485（L）435(W)580(H)mm
		2. The content of the color box printing pattern should be correct and meet the packaging requirements.
